Crankshaft Bearing Wear and Corundum Abrasive

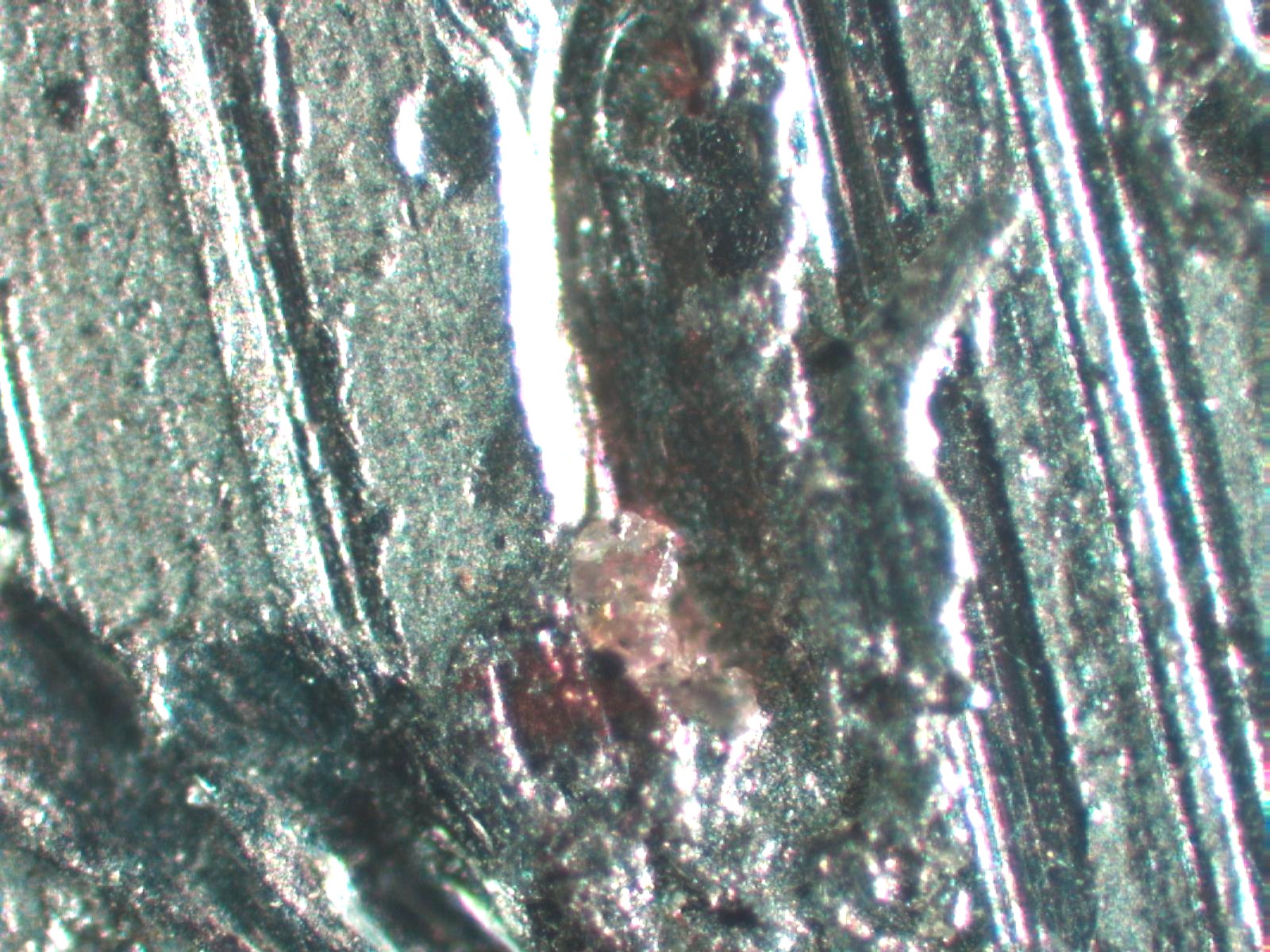

This is the surface of a worn crankshaft bearing as a result of using corundum abrasive paper to clean the valves in this engine. The corundum also does damage to the cylinders but if finally causes failure in the bearings. A corundum abrasive particle can still be seen stuck in one end of one of the groves carved by that particle.

Reflected Darkfield Illumination

Definition/Function:

Significance in the Environment:

Characteristic Features:

Associated Particles:

References:
