Carbon Fiber Composite Thin Section

Carbon Fiber Composite Thin Section With Peel Ply Still In Place

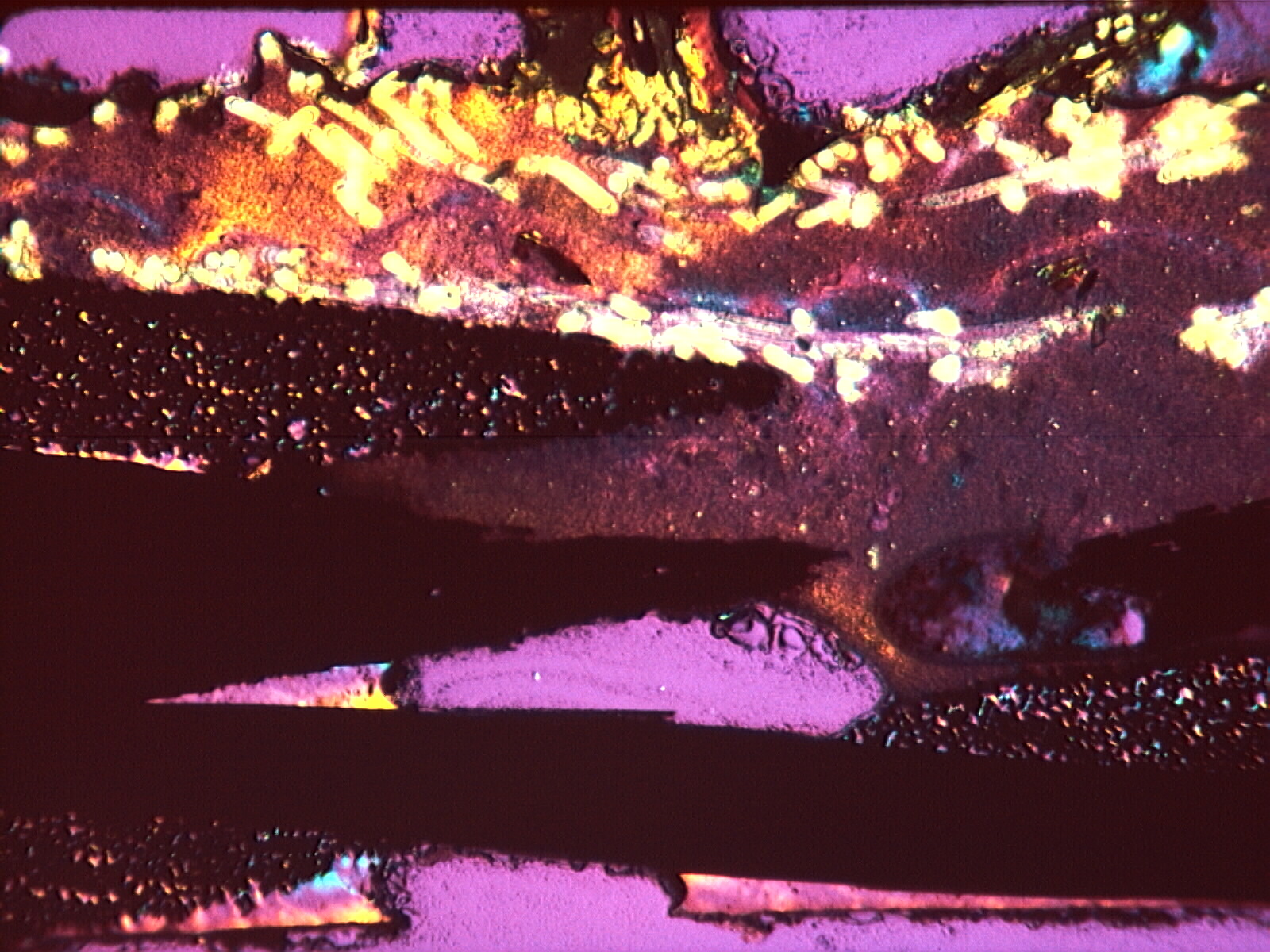

The peel ply is reinforced with polyester fiber (the larger white or yellowish fibers). The peel ply resin is cloudy in appearance and can be seen to have enveloped part of the outermost carbon fiber fabric ply. The carbon fiber resin is clear and can be seen between the deeper carbon fiber bundles. Two large voids in the composite can be seen at the lower center of the image, one above the other. A delamination is evident at the bottom of the image.

Transmited Crossed Polarized Light with Red Plate Compensator
