Teflon Liner, Glass Cloth Wrap

Reflected Darkfield Illumination

Definition/Function:

Hydrocarbon or fluorocarbon fluids flowing through Teflon tubes can create very high static charges. In this case kerosene was flowing through a wire-braid hose with a Teflon liner. The static charge built up on the interior of the Teflon surface and then discharged to the wire braid on the outside of the tube. The discharge created a hole through the Teflon liner and the glass fiber insulation on the outside of the Teflon. The result was the formation of a leak. There were a number of these discharges so the leak became significant.

Significance in the Environment:

Characteristic Features:

Associated Particles:

References:

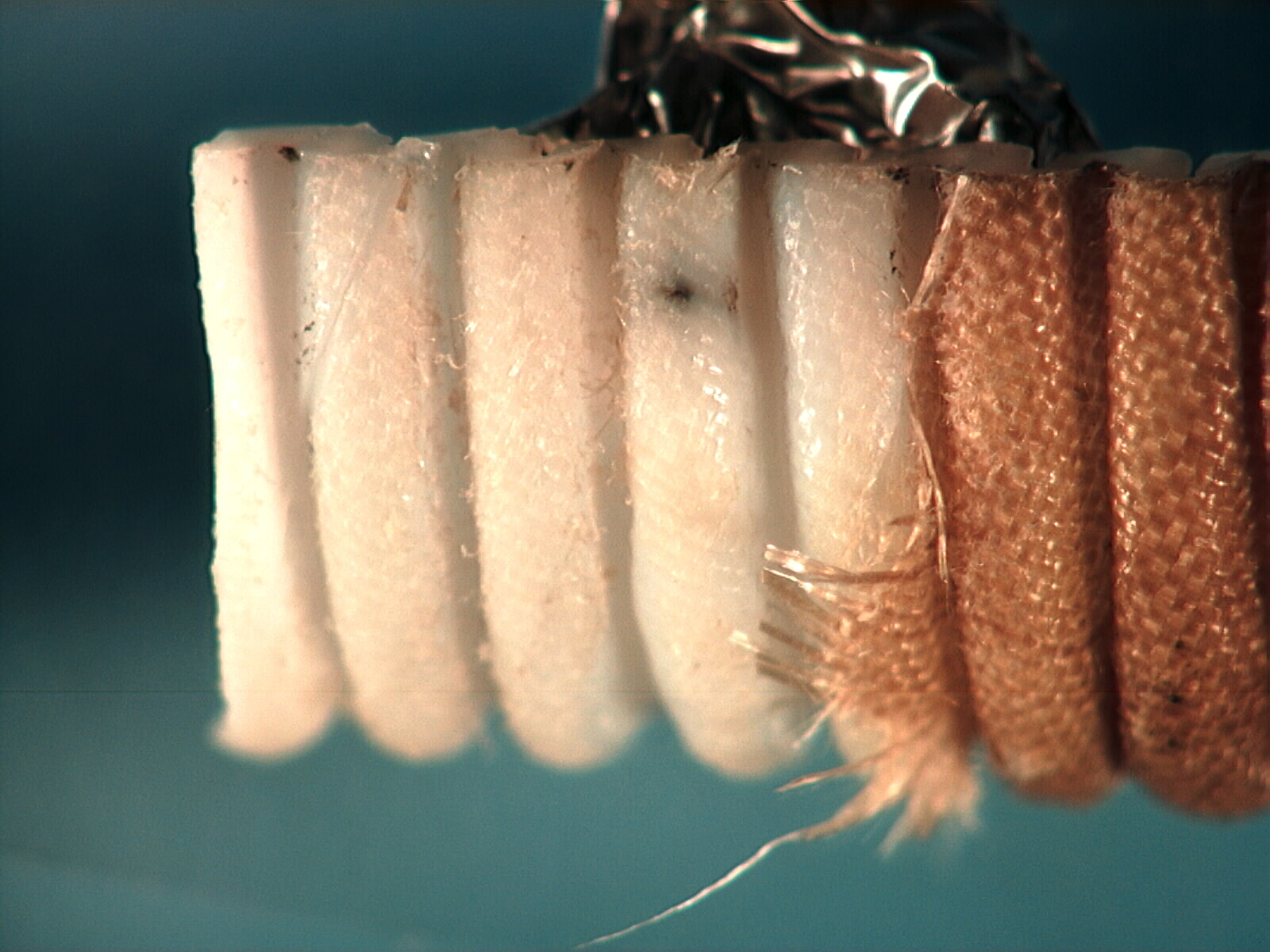

The Dark discharge scar can be seen on the outside of the teflon liner.
